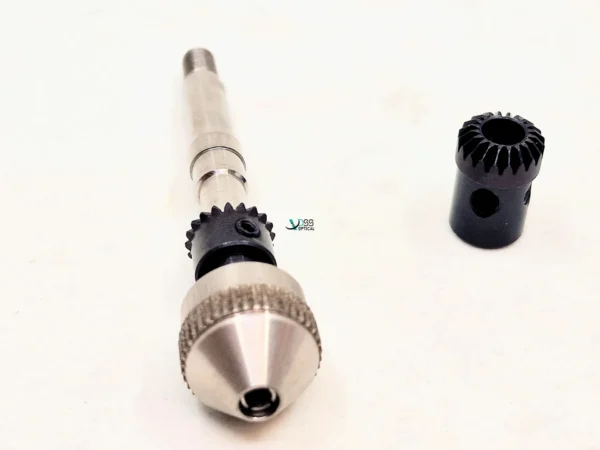

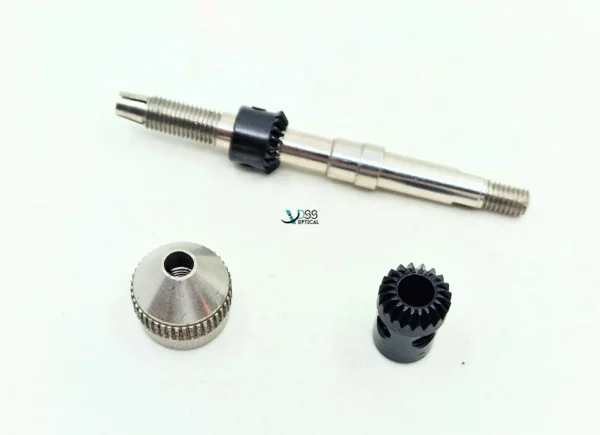

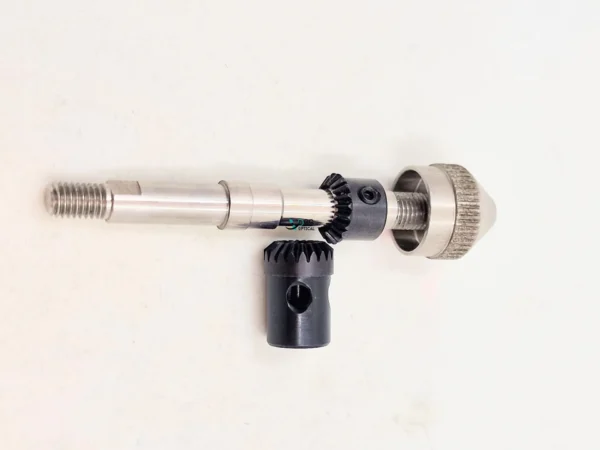

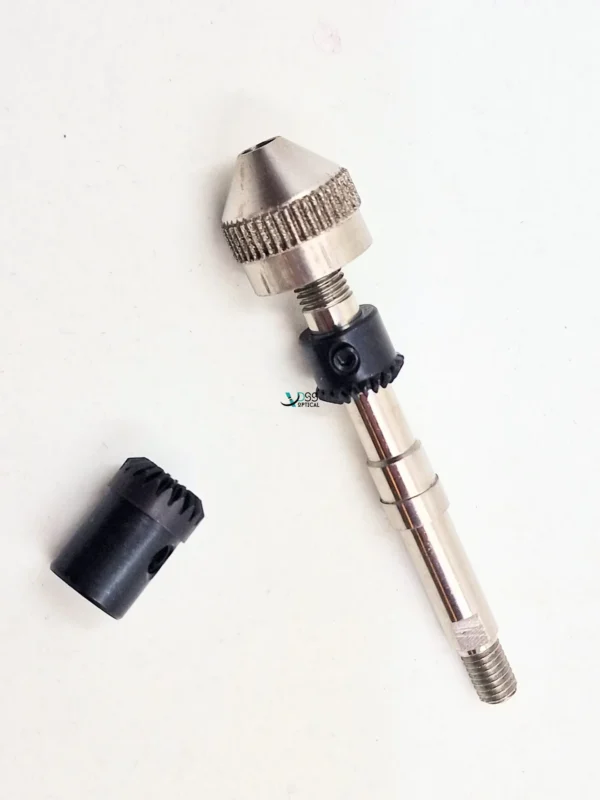

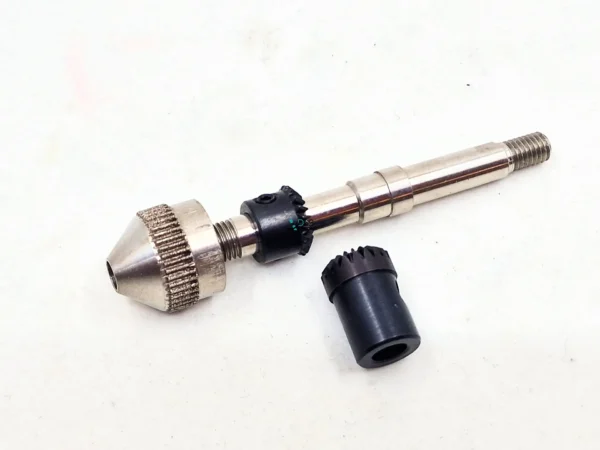

Premium Remanufactured Drilling Axis Assembly for Nidek ME-1000
Restore the flawless precision of your optical edger with our Remanufactured Drilling Axis Assembly, engineered specifically for the Nidek ME-1000.
This high-quality replacement lot is a meticulously remanufactured assembly of three essential original Nidek components:
- 40350-M368 NUT
- 40350-3310 SHAFT
- 40350-M390 BEARING
The shaft is the heart of your machine’s drilling capabilities. Over time, constant mechanical stress can cause wear on the original axis, leading to micro-vibrations and inaccurate drill holes. Replacing the complete assembly ensures your edger operates with factory-level accuracy.
This component also comes pre-fitted with the essential 40350-M392 Gear, ready to be integrated seamlessly into your machine’s 40350-3400 sub-assembly.
⚠️ Technical Warning: Advanced Installation
Please note that installing this drilling axis involves complex dismantling of the 40350-3400 sub-assembly. This part is strictly intended for experienced optical technicians. Incorrect installation, poor alignment, or improper tensioning can result in damage to the drilling mechanism or the lens.
Key Features at a Glance
- Comprehensive Assembly: Integrates three key OEM parts (M368 Nut, 3310 Shaft, M390 Bearing) into one ready-to-install remanufactured unit.
- Restored Precision: Eliminates axis play and vibrations, guaranteeing perfectly centered and clean holes in all lens materials.
- Pre-Installed Gear: Supplied directly with the 40350-M392 Gear to ensure perfect synchronization with the drive motor.
- Exact OEM Fit: Designed to adapt flawlessly to the Nidek ME-1000 40350-3400 sub-assembly.
Technical Specifications
| Feature | Specification |
|---|---|
| Component Type | Drilling Axis / Shaft Assembly |
| Condition | Remanufactured |
| Replaced OEM Parts | 40350-M368, 40350-3310, 40350-M390 |
| Included Add-ons | Pre-fitted Gear (40350-M392) |
| Compatibility | Nidek ME-1000 (Adapts to sub-assembly 40350-3400) |
| Skill Level Required | Advanced (Experienced Technicians Only) |
💡 Pro Tip: Post-Installation Calibration
Because this installation requires disassembling the 40350-3400 core unit, always perform a complete drill-hole calibration test on a scrap CR-39 lens before running any real jobs. Check for zero-point axis alignment to ensure the new gear meshes perfectly without skipping steps.
